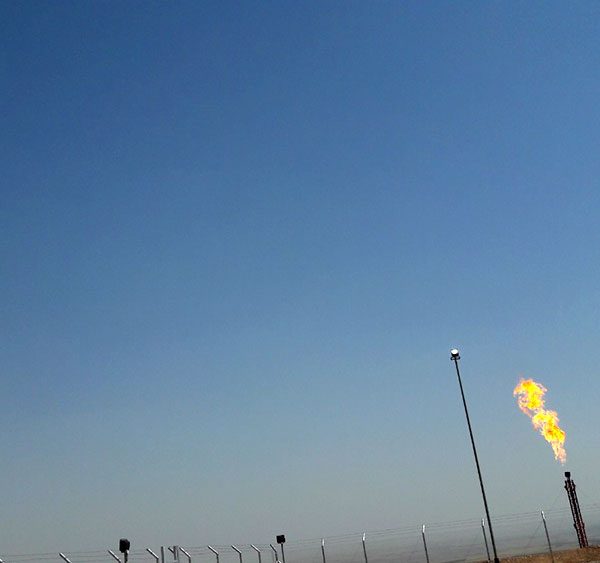

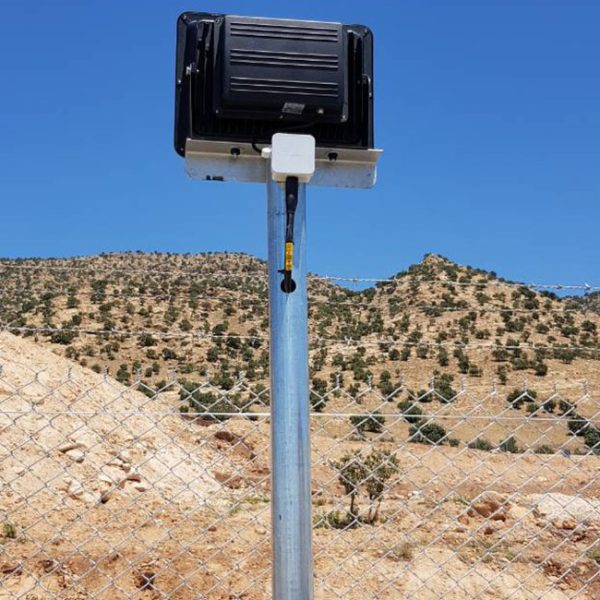

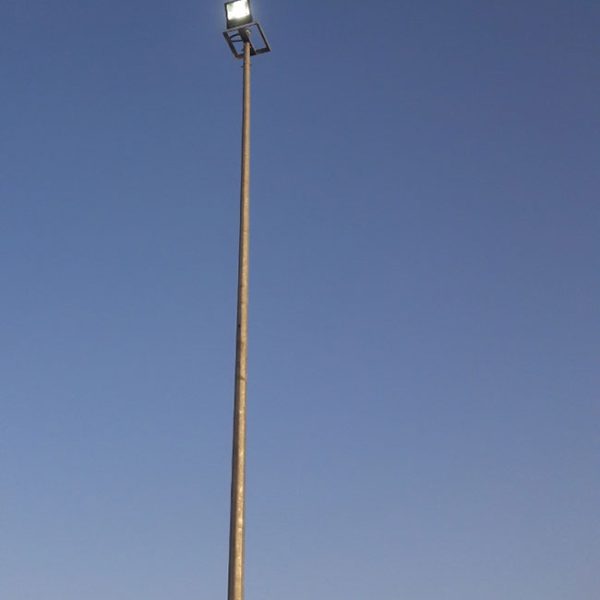

1. Fabricate and install 10 lighting poles. Maximum distance from pole to pole is 25Mt.

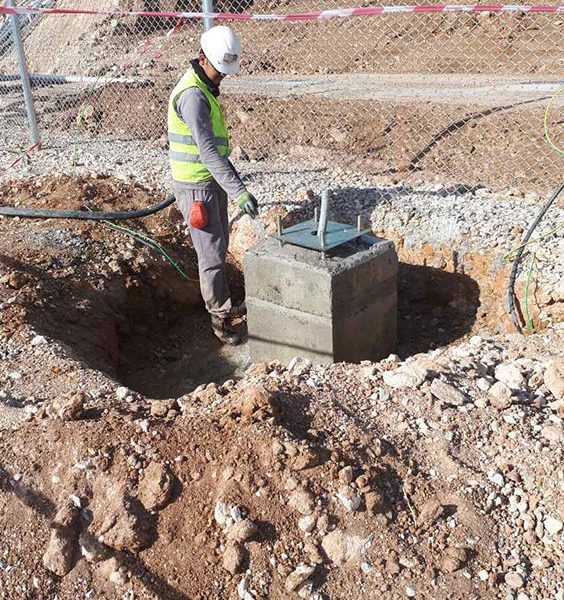

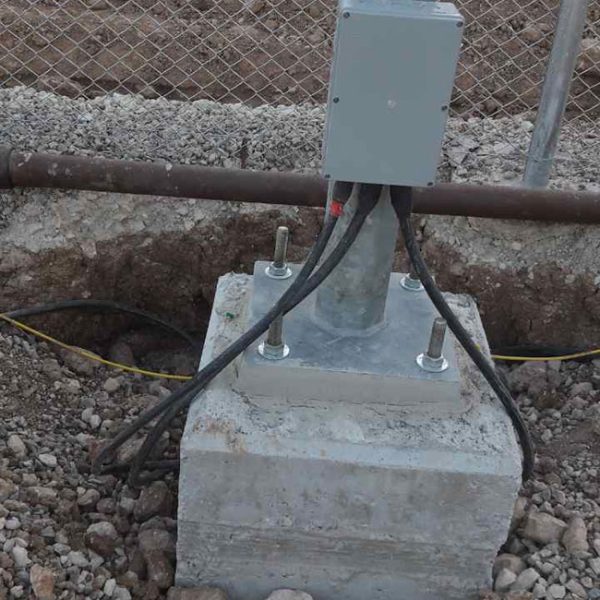

Using galvanized post pipe 3” the length of pipe is 3.0m (2.5 m above ground and 0.5 m
underground with concrete base (0.5m L x 0.5mW x 0.6m D).

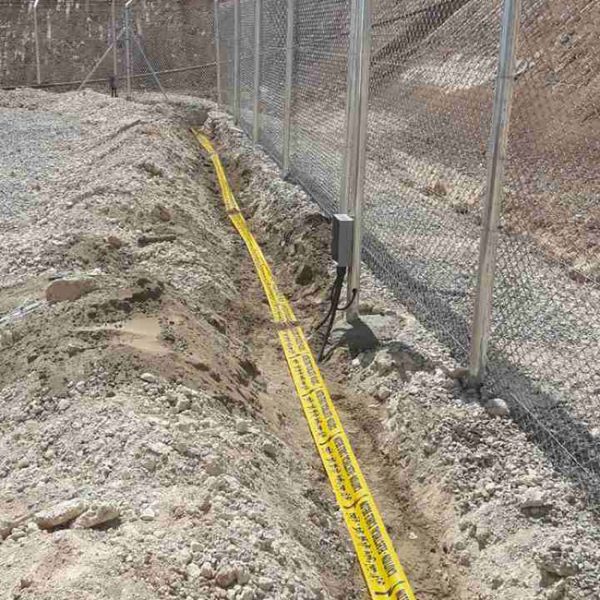

2. All power and earthing cables are to be buried a minimum of 500mm below grade and backfilled with 100 mm of sharp on top of the cables.
Normal fill material is then to be placed on top of the sand to grade level and compacted.
3. Install 4 earthing pits and earth rods and install the earthing system.

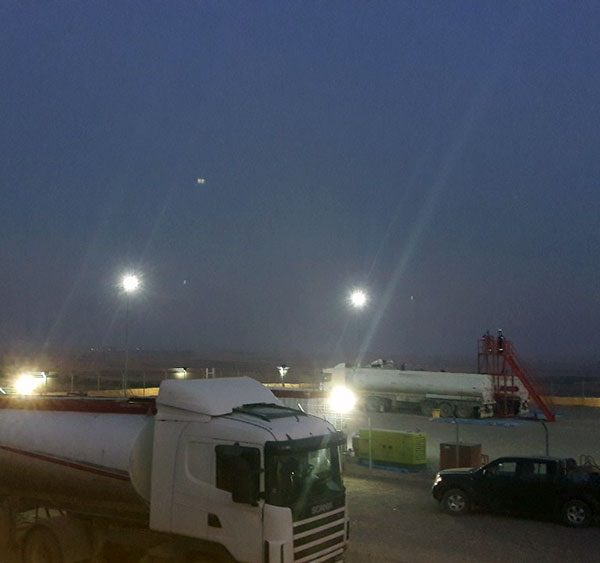

4. Provide a temporary generator to power up and test the lighting system. and complete all
Mechanical Completion Check sheets and Pre-Commissioning Check sheets.
5. Fabricate and install 6 lighting poles and cables.
6. Provision and installation of rebar with different sizes for pole lights.
7. Shuttering works using fear face wood.
8. Ordinary concrete (350 kg/m3).
9. Provide a temporary generator to power up and test the lighting system.
